Blue Color Multijet Meter Smart Metering System 24 - 35V Power Voltagefunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'pl', function () {});}

Blue Color Multijet Meter Smart Metering System 24 - 35V Power Voltagefunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'pl', function () {});}

    • Blue Color Multijet Meter Smart Metering System 24 - 35V Power Voltage
    • Blue Color Multijet Meter Smart Metering System 24 - 35V Power Voltage
  • Blue Color Multijet Meter Smart Metering System 24 - 35V Power Voltage

    Szczegóły Produktu:

    Miejsce pochodzenia: CHINY
    Nazwa handlowa: Lanhua
    Orzecznictwo: ISO4064
    Numer modelu: Mbus-15-1

    Zapłata:

    Minimalne zamówienie: 1000
    Szczegóły pakowania:
    Czas dostawy:
    Zasady płatności: L/C, T/T
    Możliwość Supply:
    Kontakt
    Szczegółowy opis produktu
    Rodzaj produktu: :
    : :
    Pokaz: Nr Ochrony: IP67
    Montaż: Ciśnienie:
    Średnica:
    High Light:

    multijet water meter

    ,

    Dry Dial water meter

    AMR smart metering system by Multi jet water meter with wired Mbus Diameter: DN15 - DN25



    Description



    The market demands on the inetegration of water meters, with modern remote reading systems is the ability of the meters to communicate. Our AMR-technology provides modular structured solutions for smart metering systems via suitable interfaces, adapted to individual customer requirements. Our portfolio inclueds bothe wired bus systems and wireless radio solutions, as well as the associated software for activation and for taking readings with the systems.



    Work logic



    1. Basic communication device: M-BUS collector and measurement meter transmit data by M-BUS line with 4 channels, and can connect the meter according to any topological structure. Build in backup battery, could works for 48 hours normally, and the data can be saved for 10 years if power is cut off.

    2. Relay communication: Middle layer communication means the communication between the concentrator and collector. This communication is by wireless RF way, no need of communication line. The wireless communication distance between the concentrator and collector can be about 3km at open environment.

    3. Upper transfer communication: Communication methods indicate below can be selected between concentrator and management center.

    (a) GPRS Communication Mode

    (b)Telephone Line Communication Mode

    (c) RS232 Communication Mode

    (d) Ethernet Communication Mode



    Applications:

    Industrial and commercial water supply, volumetric water flow metering and automatic meter reading for utility, irrigation.



    FUNCTIONS

    1.Totally sealed design, waterproof.

    2. Automatically memorize the wheel code position and no need initiation.

    3. Avoiding external strong magnetic attack, high performance of anti-interference.

    4. Effectively solve the phenomenon of reversing and hammering.

    5. Adopting M-BUS communication port, which with long distance communication.

    6. No need power supply for daily work.

    7. With remote valve control function that can stop water supply remotely.



    The basic water meter Features:

    • The Nominal flowrate of Qn 1.5 m³/h to 15m³/h, Q3 2.5m³/h to 25m³/h
    • R value is R80 / 100 / 125 / 160 as requested
    • Suitable for both cold and warm water applications
    • Replaceable meter inserts available
    • Good readability even at extreme operational conditions
    • Optionally retrofittable with pulse contactors

    Water meter operate condition:

    • Water temperature:0.1℃~40℃ for cold water
      30℃~90℃ for hot water meter.
    • Water pressure: ≤1.0 Mpa

    Note:

    • Measuring accuracy conform to ISO 4064 class B standard..
    • Available with different length on request. Available in hot water meter on request.

    Maximum Permissible Error:

    (1) Between qt (included) and qs is ±2%;
    (2) Between qmin and qt (excluded) is ±5%.

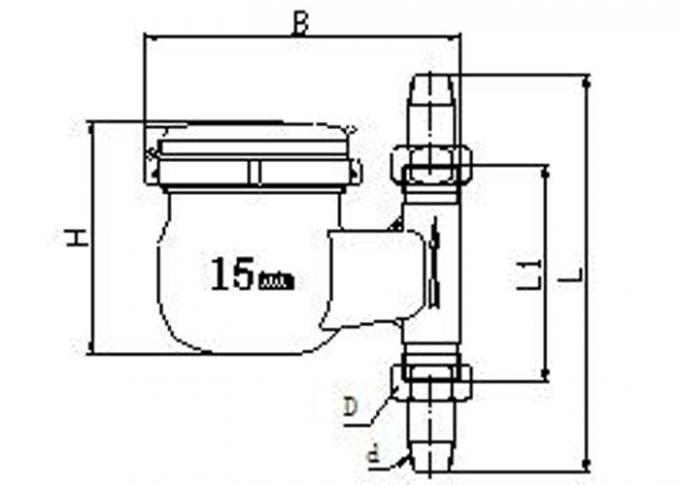

    Blue Color Multijet Meter Smart Metering System 24 - 35V Power Voltagefunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'pl', function () {});} 0

    TECHNICAL PARAMETERS

    Caliber(DN) 15mm 20mm 25mm
    Overload Flowrate (Q4) 3.125 m³/h 5 m³/h 7.875 m³/h
    Permanent Flowrate (Q3) 2.5 m³/h 4 m³/h 6.3 m³/h
    Transitional Flowrate (Q2) 0.05 m³ /h 0.08 m³/h 0.126 m³/h
    Minimum Flowrate (Q1) 0.0313 m³/h 0.05 m³/h 0.0788 m³/h
    Measurement Range (Q3/Q1) 80
    Minimum Reading 0.0001m³
    Maximum Reading 9999m³
    Measure Unit 1m³
    Working Temperature

    0.1℃~30℃(cold water)

    0.1℃~90℃(hot water)

    Communication Interface M-BUS
    Pressure Level â–³P63
    Working Pressure 0.03MPa~1MPa
    Flow Section Sensitivity Level U10, D5
    Climate and Mechanical Environment Safety Level B
    EMC E1









































    Competitive Advantage:

    • Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
    • Strict process control
    • Advanced calibration equipment
    • Engineer team
